CSI-CS6W-550MS/30 - v2

CSI

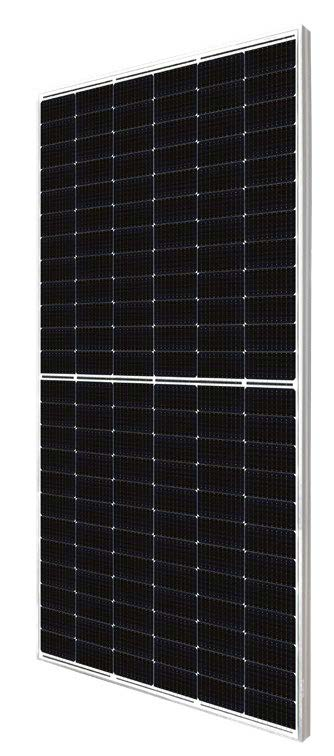

Canadian CS6W 550W PERC Mono 144half-cell Sliver 30mm MC4 (CS6W-550MS (IEC1000V))

Datasheet
Installation Manual
Warranty Document

Login For Price

Canadian CS6W 550W PERC Mono 144half-cell Sliver 30mm MC4 (CS6W-550MS (IEC1000V))

Specification
Cell Type

P-Type

Power

550 W

Glass

3.2 mm

Connector Type

MC4

Frame Thickness

30 mm

Frame Color

Silver

Shipping Information
CEC Model

CS6W-550MS (IEC1000V)

Qty Per Pallet

35

Unit Weight (kg)

27.60

Pallet Weight (kg)

1,026.00

Unit Dimension
Length (mm)

2,278

Width (mm)

1,134

Height (mm)

30

Pallet Dimension
Length (mm)

2,350

Width (mm)

1,130

Height (mm)

1,255

Warranty Information(Please refer to the warranty document from the manufacture)
Product Warranty

12 Year(s)

Performance Warranty

25 Year(s)

Canadian Solar Inc. is one of the leading solar manufacturers in the world, delivering high efficiency solar cells, solar modules, solar power systems and off grid solar power application solutions. With manufacturing facilities in Canada and China, Canadian Solar has a total module production capacity of 3GW. In the past 13 years, Canadian Solar has been working closely with over 1000 customers in over 90 countries, delivering over 7GW of solar modules. Some of these modules are installed in utility scale power plant that won 2012 Solar Project of the Year award; some are used by tens and thousands of families in their off grid small solar home systems for daily lighting. From far and wide, Canadian Solar stands for QUALITY, RELIABILITY and VALUE.

    Product Key Features:
  • Exellent module Efficiency up to 16.6%
  • High performance at low irradiance above 96.0%
  • Positive power tolerance up to 5w
  • High PTC rating up to 91.94%
  • Anti-glare module surface available
  • IP67 junction box long term weather endurance
  • Heavy snow load up to 5400pa
  • Salt mist, ammonia and blown sand resistance, for seaside, farm and desert environment

Canadian Panels Datasheets..
